Our Reference No. 2DA 343 800-057

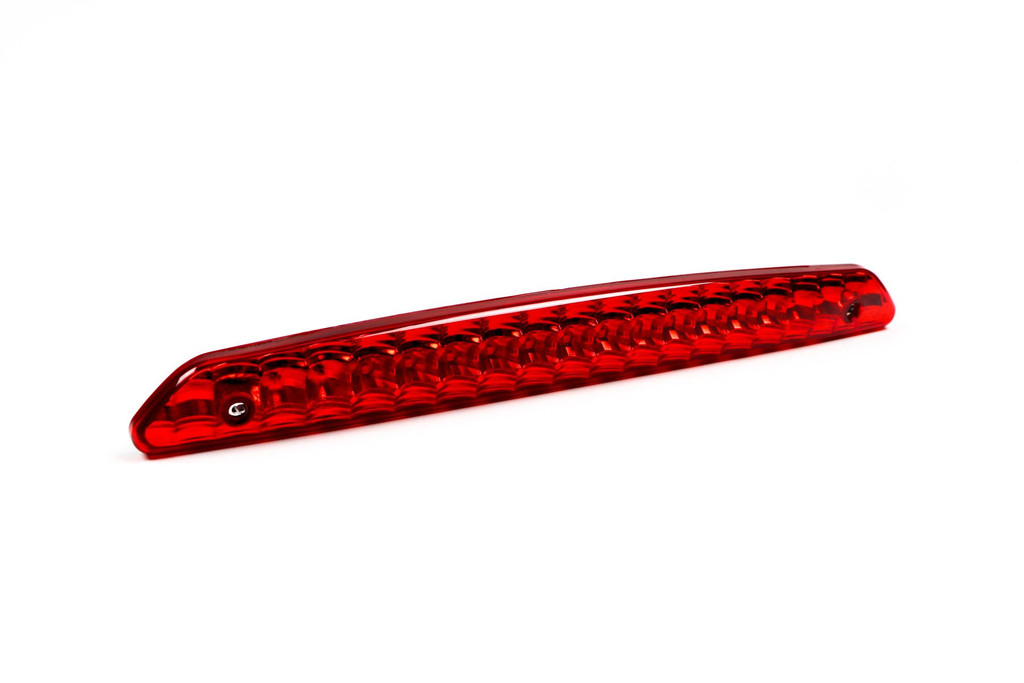

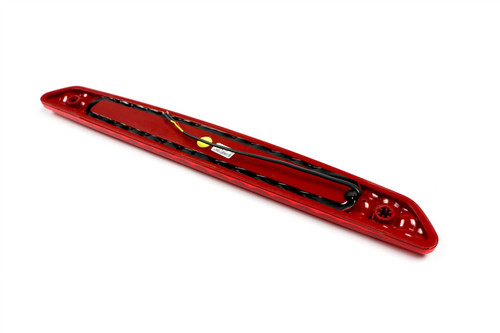

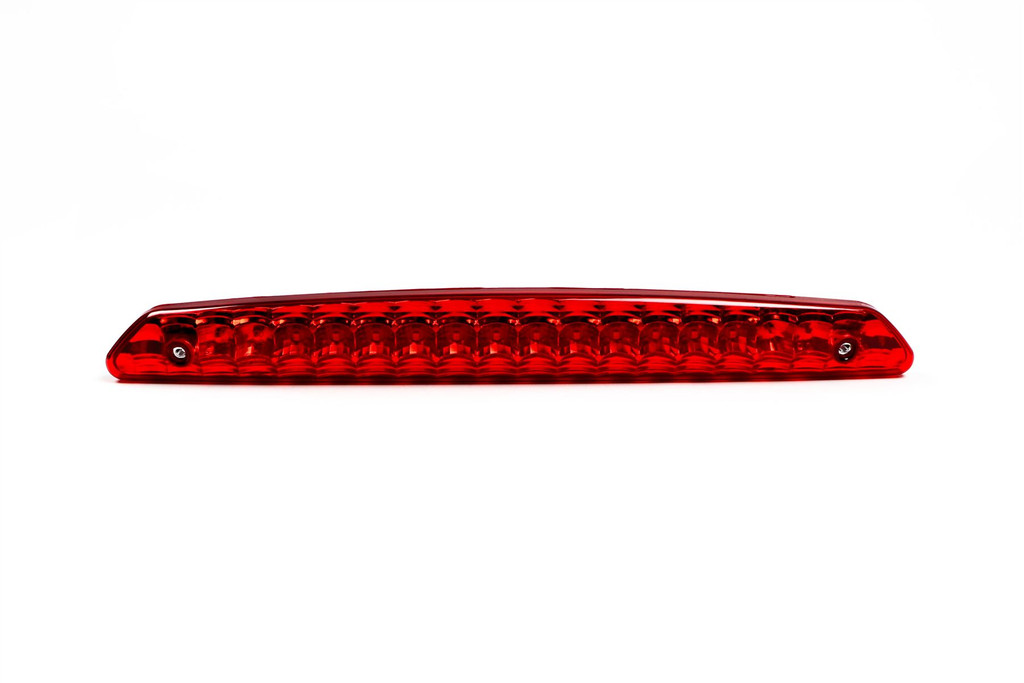

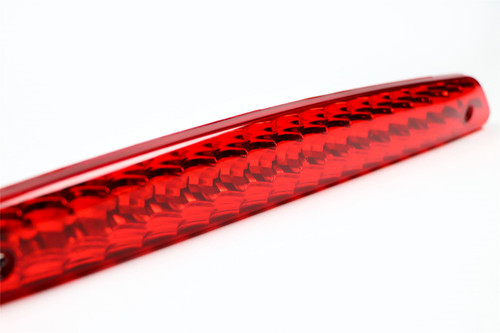

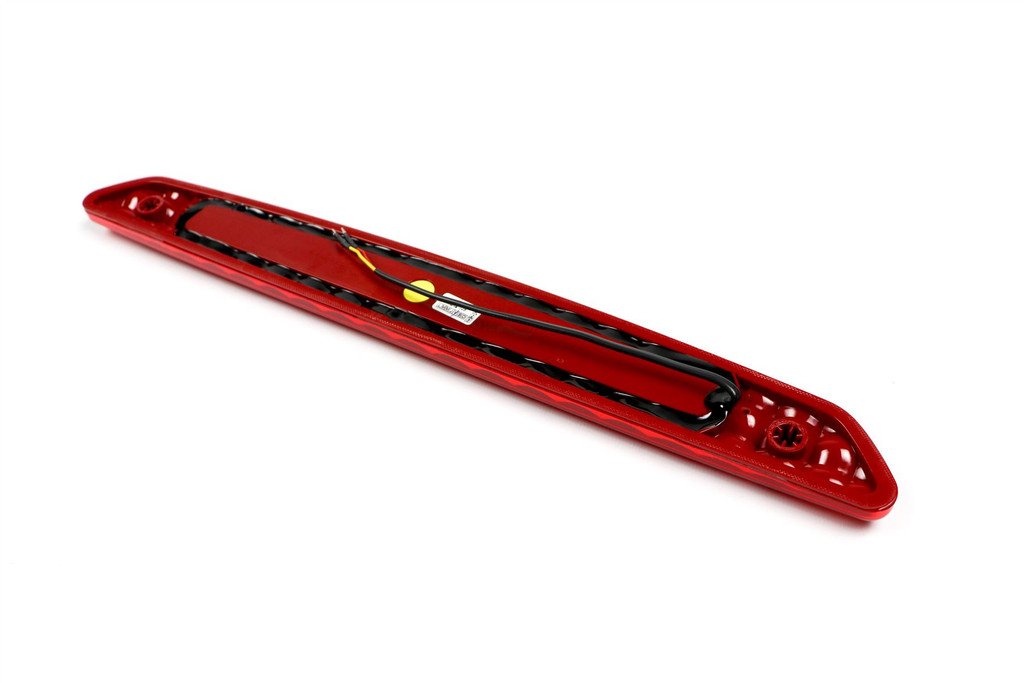

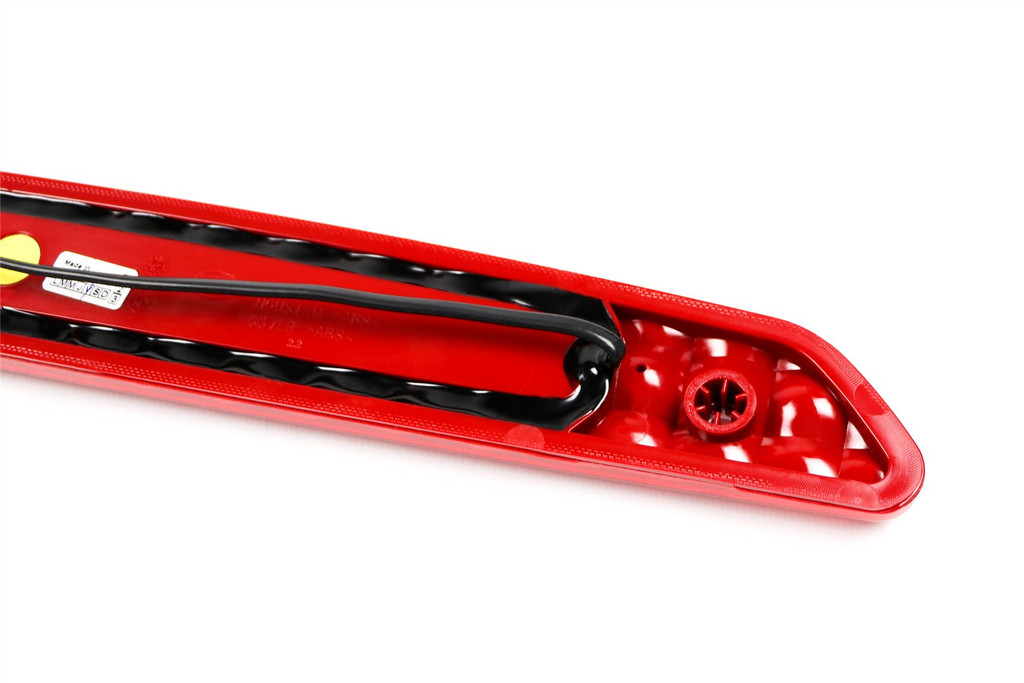

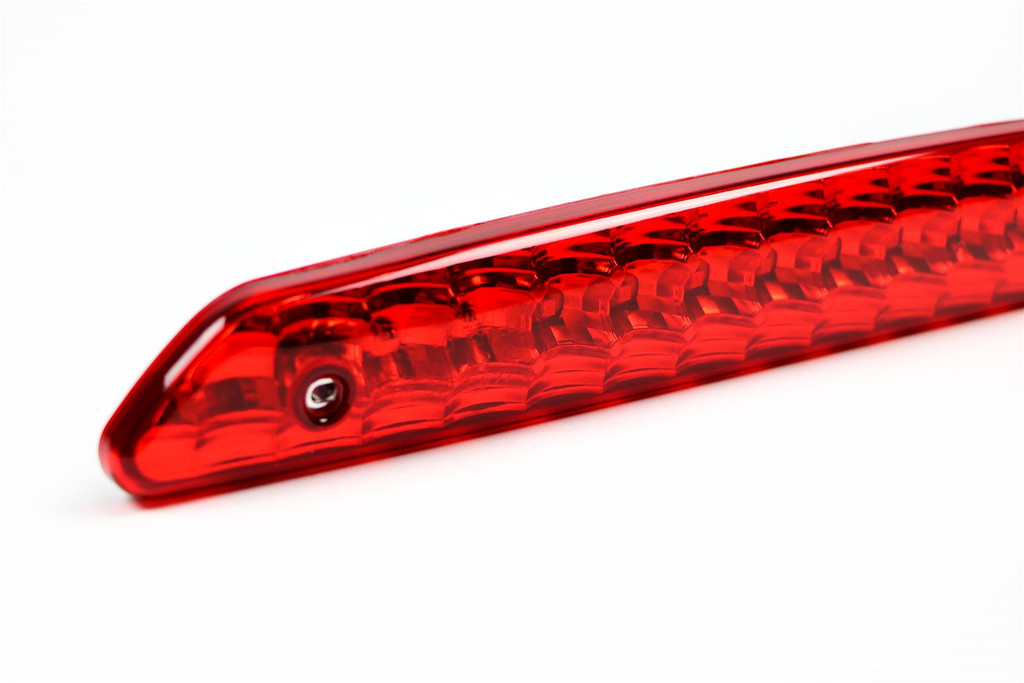

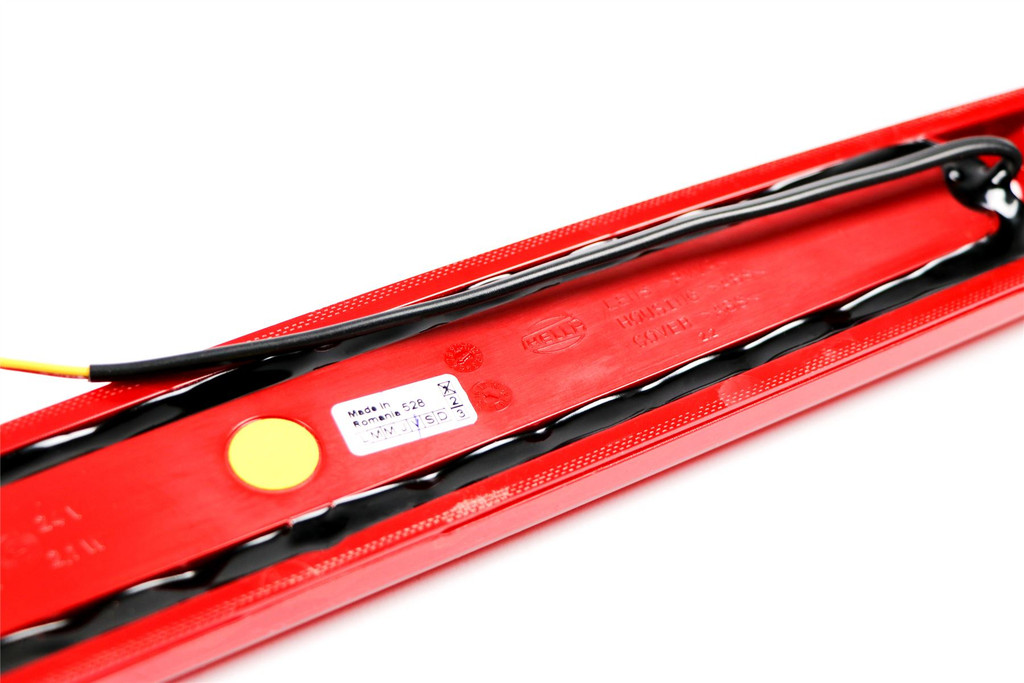

Rear light for Trailer, Motorhome, Caravan:

- Red LED brake light for horizontal fastening with seal
- Cable Length : 200 mm
- Sold individually - positioned centrally
- Direct replacement part
- Body type: Caravan, Motorhome, Trailer
- Bulb type: LED ( 12 LED's)
- Bulbs included
- Rear with pipe
- Mouting type: glue on
- Cable Length : 200 mm
- Fully E-marked and road legal, will pass MOT
- Original equipment manufacturer part
- OEM part numbers for reference only are X830180209, X83018209
- Suitable for both RHD and LHD traffic
- Covered by a 12 month manufacturer warranty

In connection with these low powers, which are very different from bulb versions, there can be problems during operation on various traction vehicles because further lighting functions are detected by some traction vehicles.
This is a vehicle comfort function which is not required by legislation and does not release drivers from their obligation to see for themselves that the lighting equipment is working.
Here, too, faulty diagnoses can be a result of the lower power levels involved (instrument panel in the driver cab indicates a bulb failure although the function is working).
The functional ability of these light failure checks can only be established by the vehicle manufacturer.
Operation of the light with alternating current or pulsed direct current is not permitted!
The individual light functions may only be operated with a vehicle fuse of max. 3A.
In the case of onboard current limitation with the values specified above by the onboard control unit an additional fuse for the lamp is not required.

---
