Boat electrics have a bad reputation, and some of it is earned. Salt water, damp and vibration are hard on wiring, and plenty of older boats carry years of add-ons from different owners, each wired in a slightly different way.

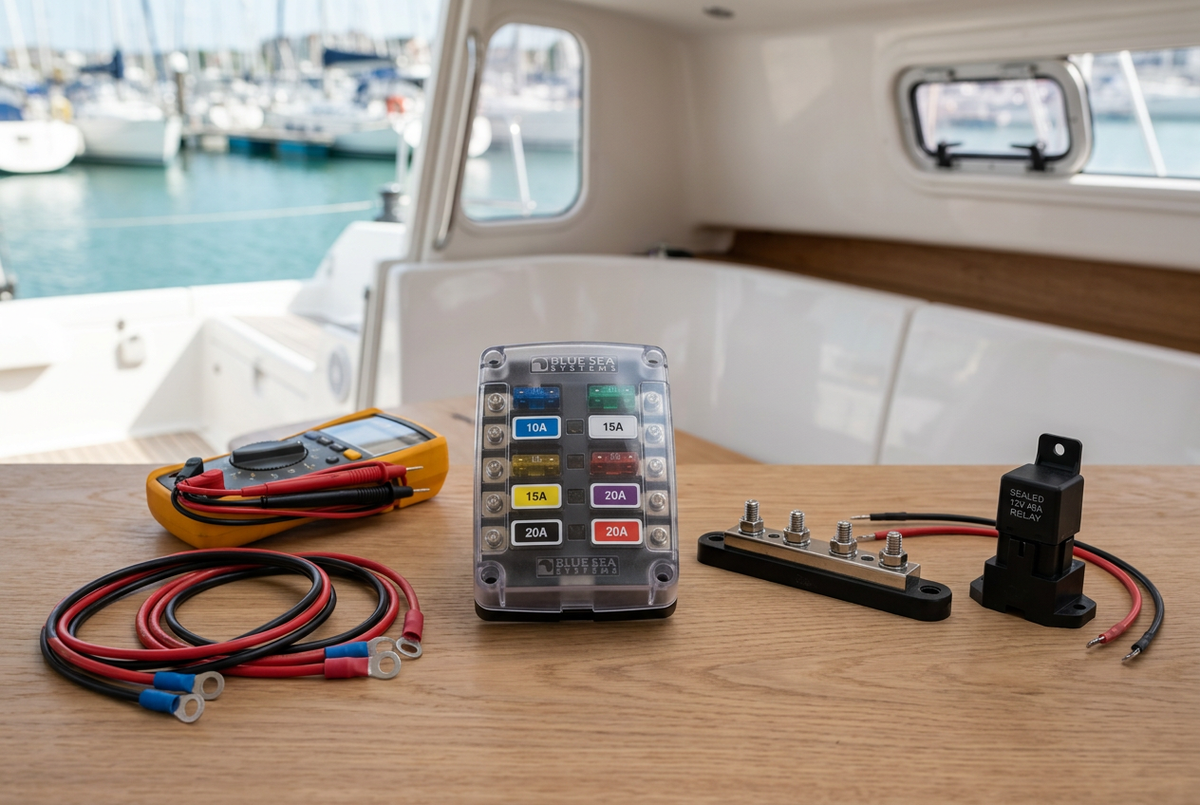

The good news is that most small boat systems are fairly simple once you understand the basic parts. This guide explains what fuses, bus bars and relays do, how they fit together, and the habits that keep a 12 volt system reliable.
The basic layout
Most small boats run on 12 volts DC from one or more batteries. Power goes from the battery through a main isolator switch, then through fuses or circuit breakers to the things that use it: navigation lights, the bilge pump, the stereo, instruments and so on. Each circuit then returns to the battery's negative terminal.
On a tidy boat, those connections are grouped together. Instead of a dozen wires bolted straight onto the battery posts, there's a fuse box or breaker panel for the positive side and a bus bar for the negative side. That makes it much easier to see what's going on and to trace faults later.
Fuses: protecting the wiring
A fuse is there to protect the wire, not the gadget. If a wire chafes through and shorts against something, or a pump jams and starts drawing too much current, the fuse blows and cuts the power before the wire overheats.
That's why fuse rating matters. The fuse should be rated to suit the wire it protects. Fit one that's too big and the wire can get hot enough to melt its insulation before the fuse ever blows. On a boat, where wiring often runs through tight, hidden spaces, that's a real fire risk.
Fuses should go as close to the battery or power source as practical, so as much of the wire as possible is protected.
Blade fuses in a fuse holder or fuse box are common on small boats. They're cheap, easy to replace and easy to label. Keep a few spares on board in the sizes you use.
If a fuse keeps blowing, don't just fit a bigger one. Something on that circuit is wrong, and it needs finding.
Bus bars: tidy connections
A bus bar is a solid strip of metal, usually copper or tinned copper, with several screw terminals along it. One heavy cable runs from the battery to the bus bar, and the individual circuits connect to the terminals.
The most common use is on the negative side. Rather than running every negative wire back to the battery, they all go to a negative bus bar, which has one heavy cable back to the battery. Positive bus bars and distribution blocks do the same job on the positive side, often feeding a fuse box.
The advantages are simple. Fewer wires on the battery terminals, which means better connections and less chance of something working loose. And everything is in one place, so you can see what's connected to what.
Junction blocks and terminal studs work along similar lines. They give you a solid, insulated point to join heavy cables or split one feed into several.
Relays: switching big loads with small switches
Some equipment draws more current than a small dashboard switch can safely handle. Spotlights, horns, electric winches and some pumps are typical examples.
A relay is an electrically operated switch. A small current from your dashboard switch energises a coil inside the relay, which closes a heavy-duty contact and lets the main current flow from the battery to the equipment. The switch only ever carries a tiny current, so it stays cool and lasts much longer.
You'll see relays described by their contacts. An SPST relay (single pole, single throw) simply turns one circuit on and off. An SPDT relay (single pole, double throw) switches between two circuits, so it can turn one thing off as it turns another on.
Relays with matching sockets are easier to replace and keep the connections protected. In a damp environment, that's worth having.
Keeping it working: what's different on a boat
Most electrical faults on boats come down to corrosion and poor connections, not failed equipment. A few habits make a big difference.
Use marine-grade cable. Marine cable is tinned, meaning each copper strand is coated to resist corrosion. Ordinary automotive cable will work for a while, but salt air turns the copper black and brittle inside the insulation, and the resistance creeps up until the circuit stops working.
Use proper crimp terminals. Crimped connections, ideally with heat-shrink, last far longer than twisted wires and tape. Use the right size terminal for the wire and a proper crimping tool.
Protect connections from water. Mount fuse boxes, bus bars and relays somewhere as dry as possible, and use covers where they're available. A light coat of a suitable corrosion inhibitor on terminals helps too.
Secure and support the wiring. Cables that are left loose will chafe against hull fittings with every wave. Clip them along their run and use grommets where they pass through bulkheads.
Label everything. Future you, or the next owner, will be grateful.
Finding a fault
When something stops working, start with the simplest explanation. Check the battery voltage and the main isolator. Then check the fuse or breaker for that circuit. If the fuse is fine, follow the wire and look for a corroded terminal or a loose connection on the bus bar.
A cheap multimeter is one of the most useful tools you can keep on board. Measuring voltage at the equipment, then working back towards the battery, will usually show you exactly where the power is being lost.
You'll find fuse holders, bus bars, relays, junction blocks and switches in our boat electrics range, along with regulator rectifiers and other outboard electrical parts.
This article is a general guide only. Boat electrics can carry high currents and present a fire risk if installed incorrectly. If you're not confident, have your system checked by a qualified marine electrician.
